VBF Series

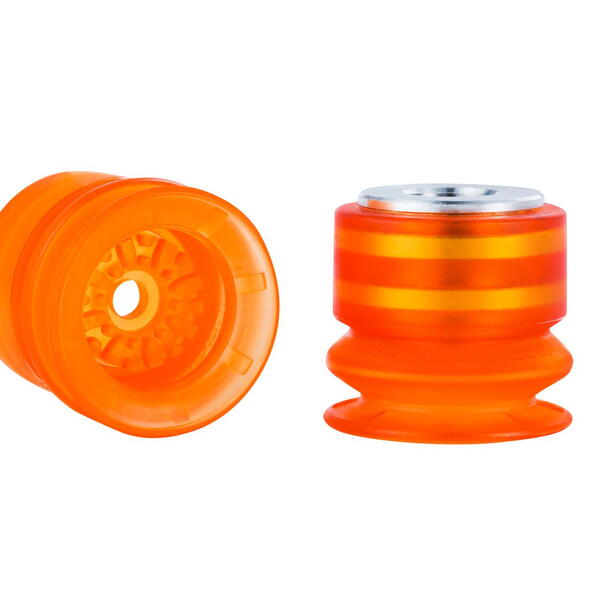

VBF25 series

VBF25 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 3.20 Kg @ -60 kPa
  • Lifting Force (→): 1.37 Kg @ -60 kPa
  • Volume: 2.6 cm³
  • Diameter: 26.5 mm
  • Catalog list

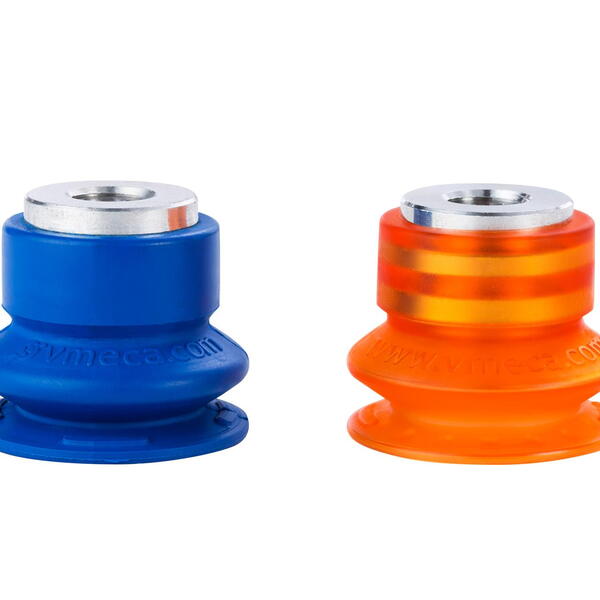

VBF30 series

VBF30 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 6.26 Kg @ -60 kPa
  • Lifting Force (→): 3.09 Kg @ -60 kPa
  • Volume: 6.0 cm³
  • Diameter: 32 mm
  • Catalog list

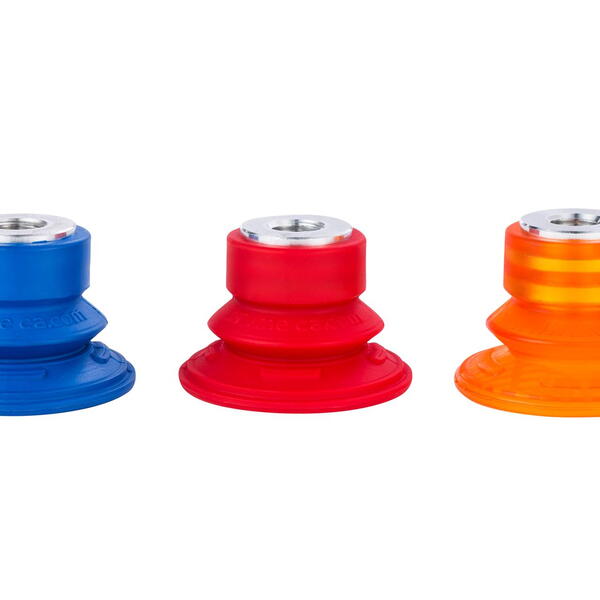

VBF40 series

VBF40 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 9.66 Kg @ -60 kPa
  • Lifting Force (→): 6.50 Kg @ -60 kPa
  • Volume: 7.20 cm³
  • Diameter: 42 mm
  • Catalog list

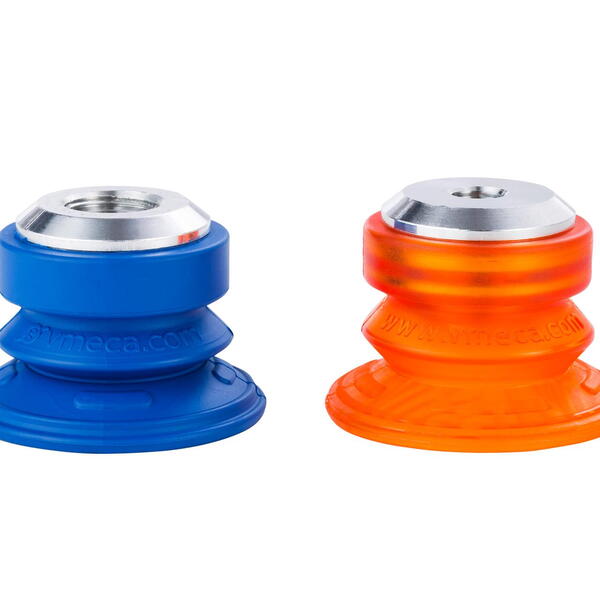

VBF50 series

VBF50 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 13.20 Kg @ -60 kPa
  • Lifting Force (→): 9.60 Kg @ -60 kPa
  • Volume: 11.0 cm³
  • Diameter: 51.5 mm
  • Catalog list

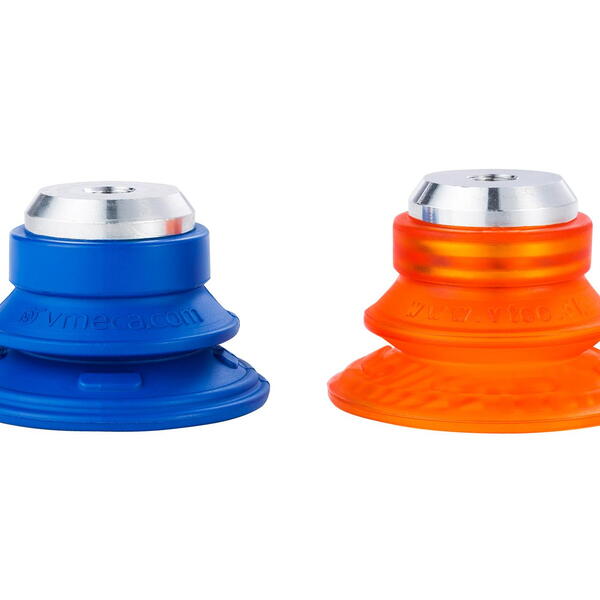

VBF60 series

VBF60 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 16.26 Kg @ -60 kPa
  • Lifting Force (→): 12.84 Kg @ -60 kPa
  • Volume: 22.0 cm³
  • Diameter: 62.8 mm
  • Catalog list

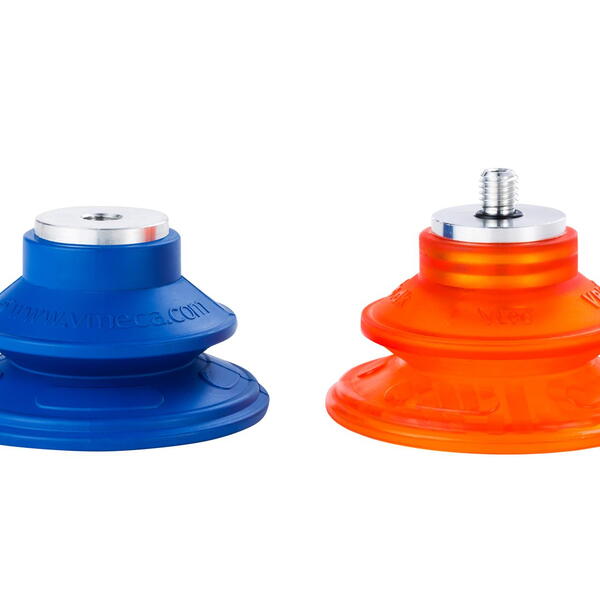

VBF80 series

VBF80 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 21.68 Kg @ -60 kPa
  • Lifting Force (→): 17.12 Kg @ -60 kPa
  • Volume: 59.50 cm³
  • Diameter: 83 mm
  • Catalog list

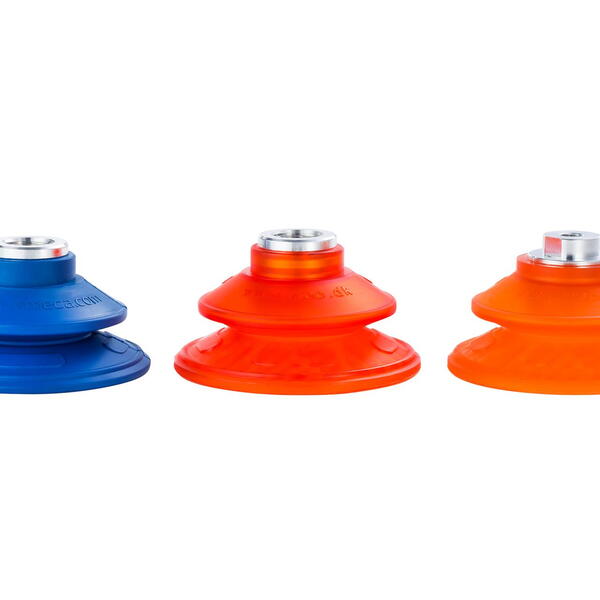

VBF100 series

VBF100 series

Large-Lip Bellows Suction Cups

  • Lifting Force (↑): 27.10 Kg @ -60 kPa
  • Lifting Force (→): 21.40 Kg @ -60 kPa
  • Volume: 103.5 cm³
  • Diameter: 102 mm
  • Catalog list
