Airtec: Elektricky řízené ventily
- Connection: G1/4 (exhausts G1/8)
- Nominal size: 4 mm to 4.5 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available Voltages: DC: 24 V, AC: 230 V
- Connection: sub-base mounting, outlets G1/4
- Nominal size: 9 to 10 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available voltages: DC: 12 V, 24 V | AC: 24 V, 115 V, 230 V
- Connection: Sub-base mounting, outlets G1/8
- Nominal size: 5 to 6 mm
- Temperature range -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available voltages: DC: 12 V, 24 V | AC: 24 V, 115 V, 230 V
- Connection: G1/2, flange ( similar to Namur )
- Nominal size: 8 mm
- Temperature range: +5°C...+50°C
- Schutzart: IP 65
- Versions: 5/2-way
- Available voltages: DC: 24 V, AC: 230 V
- Connection: G1/8
- Nominal size: 1 mm
- Temperature range: -10°C...+60°C
- Protection: IP 65
- Versions: 3/2-way
- Available voltages: DC: 24 V, AC: 230 V
- Connection: G1/2, flange ( similar to Namur )
- Nominal size: 8 mm
- Temperature range: +5°C...+50°C
- Schutzart: IP 65
- Versions: 5/2-way
- Available voltages: DC: 24 V, AC: 230 V
- Connection: G1/8, flange (similar to Namur)
- Nominal size: 4 mm
- Temperature range: +5°C...+50°C
- Protection: IP 65
- Versions: 5/2-way
- Available voltages: DC: 24 V, AC: 230 V

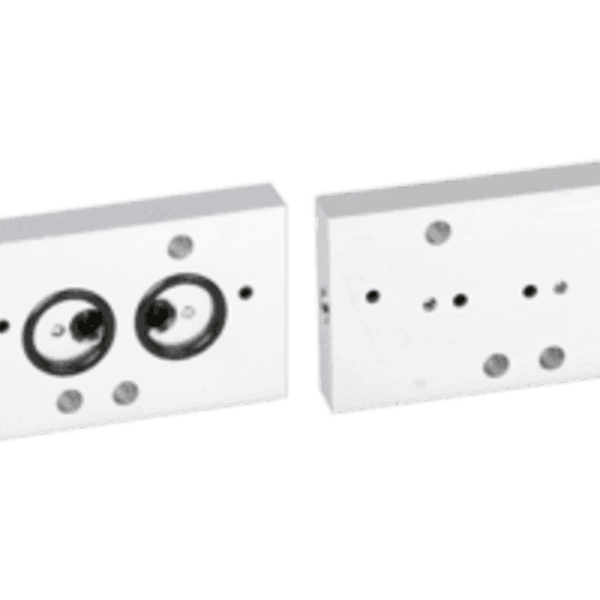

- Function: Converting plate suitable to obtain a 3/2-way function at a 5/2-way NAMUR valve.
- Connection: G1/4, Namur
- Nominal size: 4 mm
- Temperature range: +5°C...+50°C
- Turning the plate by 180° you can change a NC to a NO function or vice versa.
- Function: Flow control valves for speed regulation of pneumatically operated actuators
- Connection: G1/4, Namur
- Nominal size: 4 mm
- Temperature range: +5°C...+50°C
- Versions: 5/2-way, 5/3-way
- Connection: G1/4, Namur
- Nominal size: 4 mm
- Temperature range: +5°C...+50°C
- Protection: IP 65
- Versions: 5/2-way
- Available voltages: DC: 24 V, AC: 230 V
- Manifolds
- Connection: G1/8 to G1/2
- Connection: G1/2
- Nominal size: 6,5 mm to 8 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available voltages: DC: 24 V, AC: 230 V
- Connection: G1/4 (exhausts G1/8)
- Nominal size: 4 mm to 4.5 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available Voltages: DC: 24 V, AC: 230 V
- Connection: G1/4
- Nominal size: 5 mm to 6 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available voltages: DC: 24 V, AC: 230 V
- electrically operated
- 3/2-way, 5/2-way and 5/3-way, nominal size 4 mm, G1/8
- Connection: G1/8
- Nominal size: 3 mm to 3.2 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available Voltages: DC: 24 V
- Connection: G1/8
- Nominal size: 3.5 mm to 4 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available voltages: DC: 24 V, AC: 230 V
- Connection: G1/8
- Nominal size: 3 mm to 3.2 mm
- Temperature range: -10°C...+70°C
- Protection: IP 65
- Versions: 5/2-way, 5/3-way
- Available Voltages: DC: 24 V
- electrically operated
- 5/2-way and 5/3-way, nominal size 3 mm, sub-base mounting
- electrically operated
- 3/2-way, nominal size 1,2 mm, M5
- electrically operated
- 3/2-way, nominal size 1,4 mm, G1/8
- electrically operated
- 5/2-way and 5/3-way, nominal size 3 mm, M5
- electrically operated
- 3/2-way, 2 x 3/2-way, 5/2-way and 5/3-way, nominal size 5 mm and G1/8, nominal size 7 mm and G1/4
- electrically operated
- 5/2-way and 5/3-way, nominal size 6 mm and G1/8, nominal size 9 mm and G1/4
