VU Series

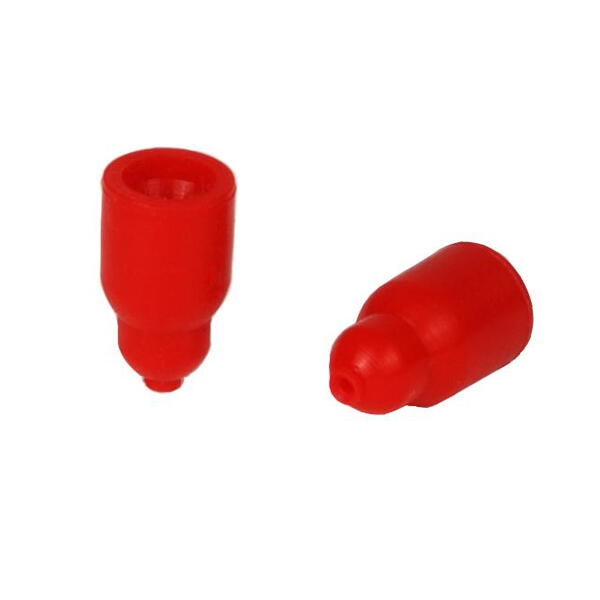

VU1.5X series

VU1.5X series

Universal Suction Cups

  • Lifting Force (↑): 0.003 Kg @ -60 kPa
  • Volume: 0.0015 cm³
  • Diameter: 1.9 mm
  • Catalog list

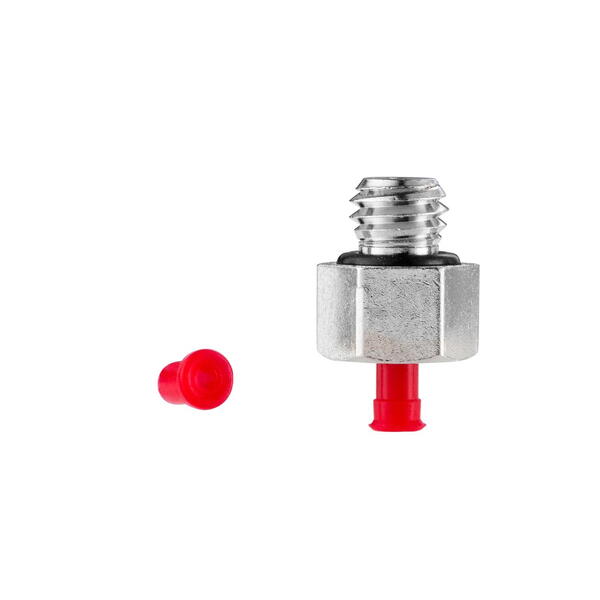

VU2 series

VU2 series

Universal Suction Cups

  • Lifting Force (↑): 0.01 Kg @ -60 kPa
  • Volume: 0.0025 cm³
  • Diameter: 2.6 mm
  • Catalog list

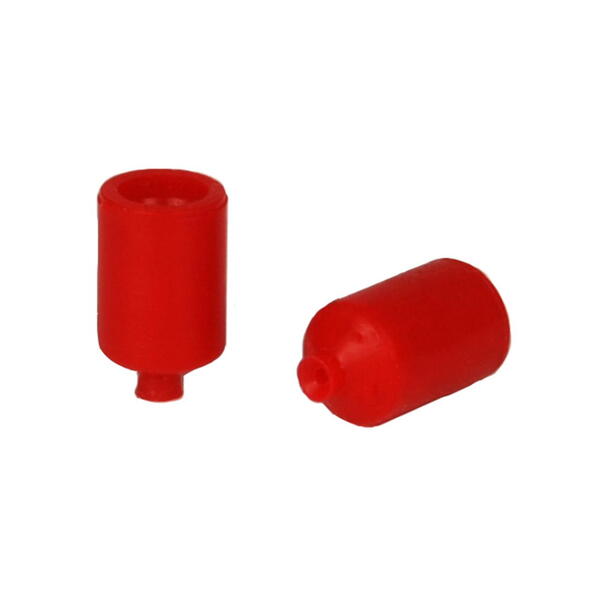

VU2X series

VU2X series

Universal Suction Cups

  • Lifting Force (↑): 0.01 Kg @ -60 kPa
  • Volume: 0.0025 cm³
  • Diameter: 2.7 mm
  • Catalog list

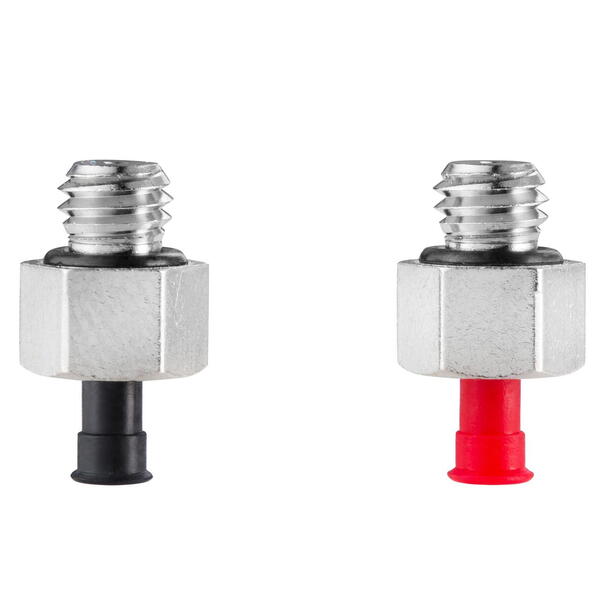

VU3 series

VU3 series

Universal Suction Cups

  • Lifting Force (↑): 0.04 Kg @ -60 kPa
  • Volume: 0.005 cm³
  • Diameter: 3.8 mm
  • Catalog list

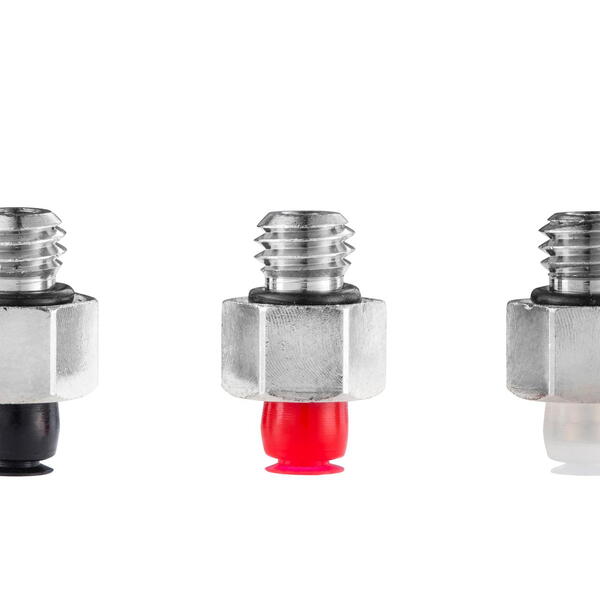

VU3K series

VU3K series

Universal Suction Cups

  • Lifting Force (↑): 0.06 Kg @ -60 kPa
  • Volume: 0.018 cm³
  • Diameter: 3.5 mm
  • Catalog list

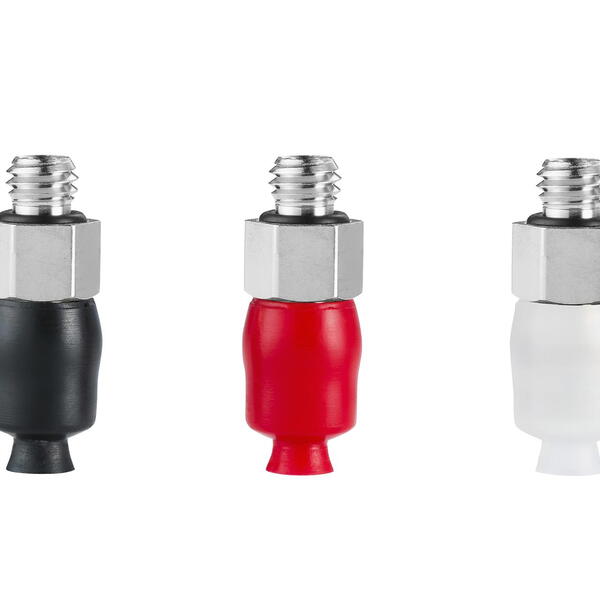

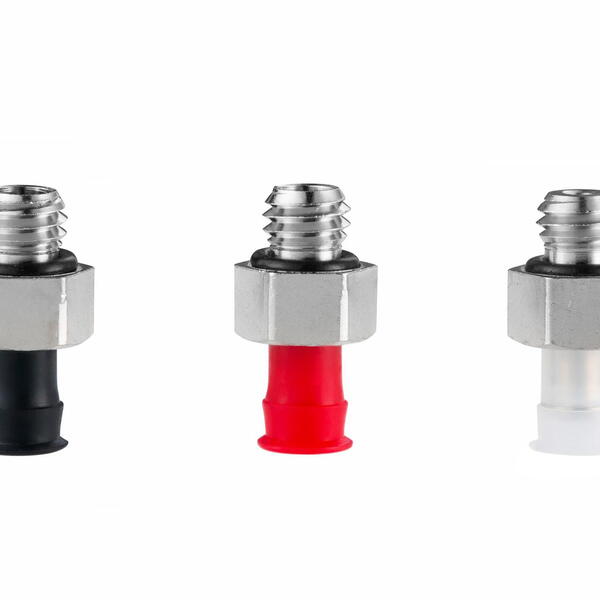

VU4 series

VU4 series

Universal Suction Cups

  • Lifting Force (↑): 0.09 Kg @ -60 kPa
  • Lifting Force (Parallel): 0.08 Kg @ -60 kPa
  • Volume: 0.03 cm³
  • Diameter: 5 mm
  • Catalog list
VU4X series

VU4X series

Universal Suction Cups

  • Lifting Force (↑): 0.09 Kg @ -60 kPa
  • Lifting Force (→): 0.08 Kg @ -60 kPa
  • Volume: 0.03 cm³
  • Diameter: 4.6 mm
  • Catalog list

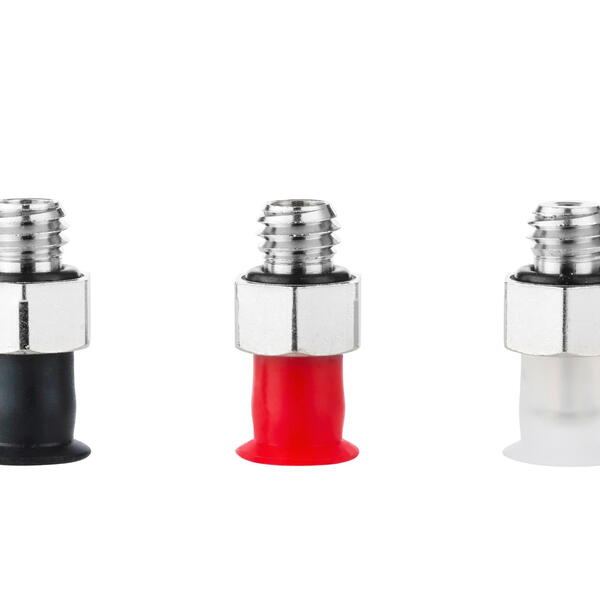

VU6 series

VU6 series

Universal Suction Cups

  • Lifting Force (↑): 0.17 Kg @ -60 kPa
  • Lifting Force (→): 0.15 Kg @ -60 kPa
  • Volume: 0.05 cm³
  • Diameter: 7 mm
  • Catalog list

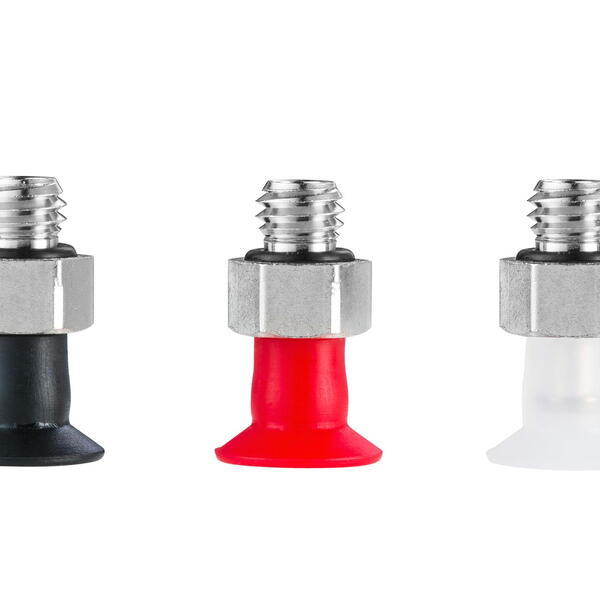

VU8 series

VU8 series

Universal Suction Cups

  • Lifting Force (↑): 0.29 Kg @ -60 kPa
  • Lifting Force (→): 0.29 Kg @ -60 kPa
  • Volume: 0.10 cm³
  • Diameter: 9 mm
  • Catalog list

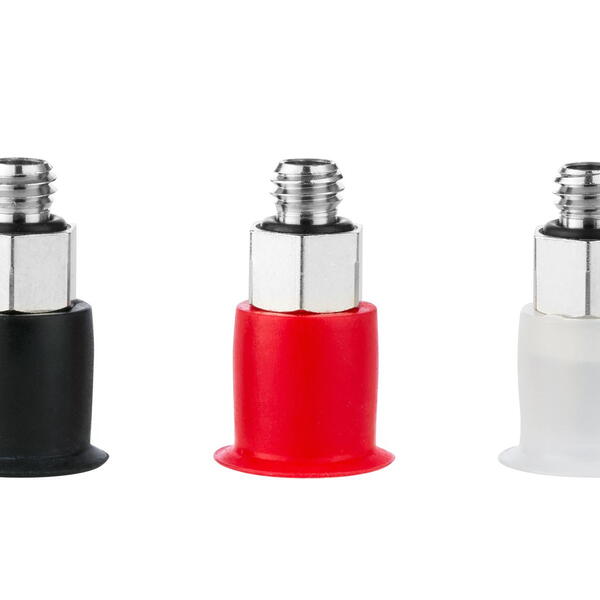

VU10 series

VU10 series

Universal Suction Cups

  • Lifting Force (↑): 0.44 Kg @ -60 kPa
  • Lifting Force (→): 0.44 Kg @ -60 kPa
  • Volume: 0.18 cm³
  • Diameter: 11 mm
  • Catalog list

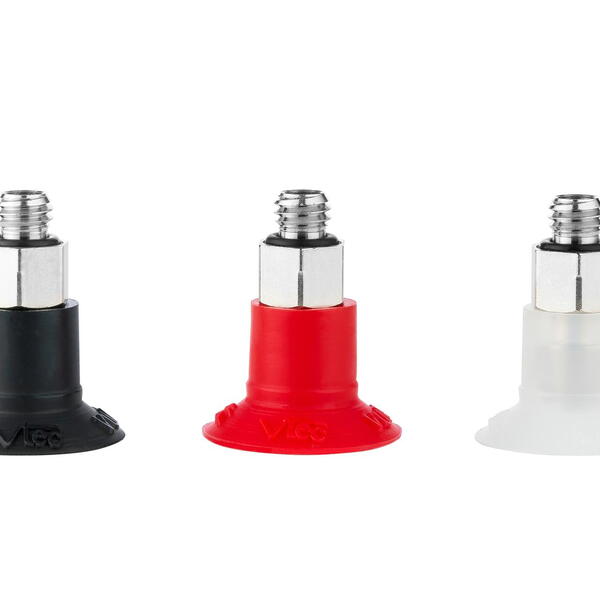

VU15 series

VU15 series

Universal Suction Cups

  • Lifting Force (↑): 0.85 Kg @ -60 kPa
  • Lifting Force (→): 0.55 Kg @ -60 kPa
  • Volume: 0.50 cm³
  • Diameter: 16 mm
  • Catalog list

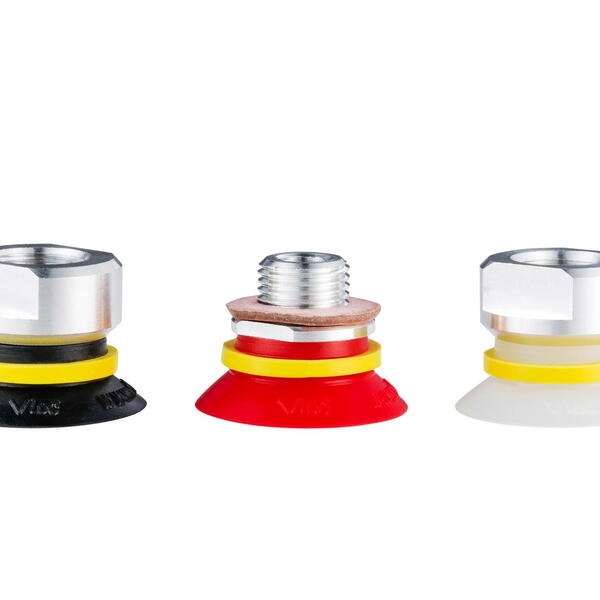

VU20 series

VU20 series

Universal Suction Cups

  • Lifting Force (↑): 1.22 Kg @ -60 kPa
  • Lifting Force (→): 0.89 Kg @ -60 kPa
  • Volume: 1.0 cm³
  • Diameter: 22 mm
  • Catalog list

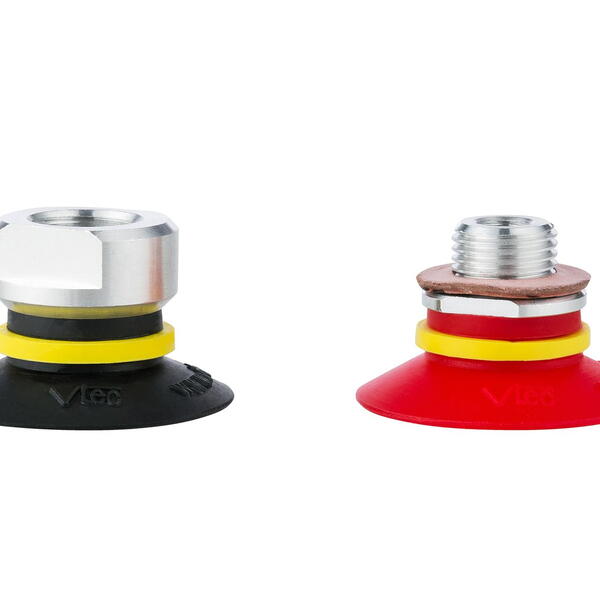

VU25 series

VU25 series

Universal Suction Cups

  • Lifting Force (↑): 1.98 Kg @ -60 kPa
  • Lifting Force (→): 0.95 Kg @ -60 kPa
  • Volume: 1.50 cm³
  • Diameter: 27 mm
  • Catalog list
VU25 series

VU25 series

Universal Suction Cups

  • Lifting Force (↑): 1.98 Kg @ -60 kPa
  • Lifting Force (→): 0.95 Kg @ -60 kPa
  • Volume: 1.50 cm³
  • Diameter: 27 mm
  • Catalog list

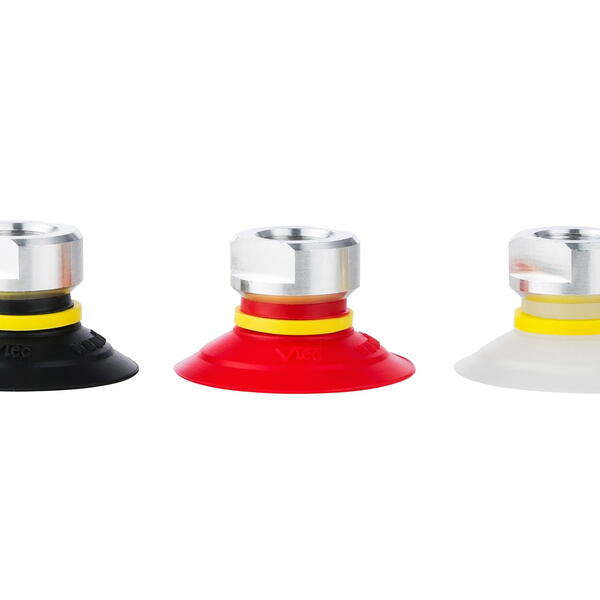

VU30 series

VU30 series

Universal Suction Cups

  • Lifting Force (↑): 2.55 Kg @ -60 kPa
  • Lifting Force (→): 1.0 Kg @ -60 kPa
  • Volume: 2.00 cm³
  • Diameter: 32 mm
  • Catalog list

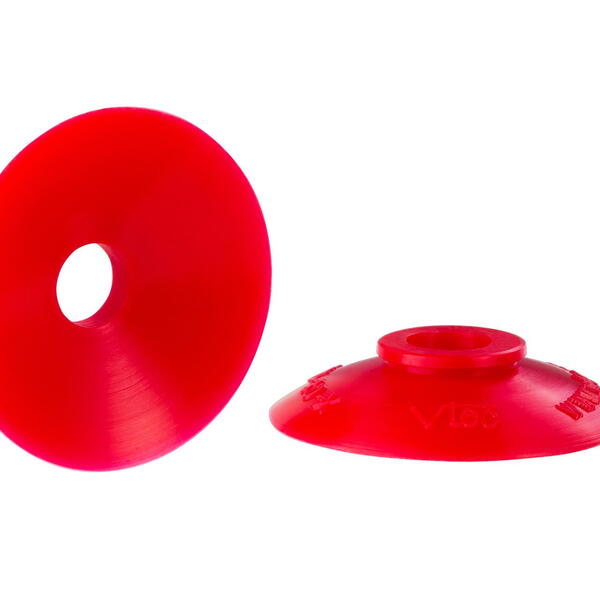

VU30X series

VU30X series

Universal Suction Cups

  • Lifting Force (↑): 1.48 Kg @ -60 kPa
  • Volume: 1.80 cm³
  • Diameter: 30 mm
  • Catalog list

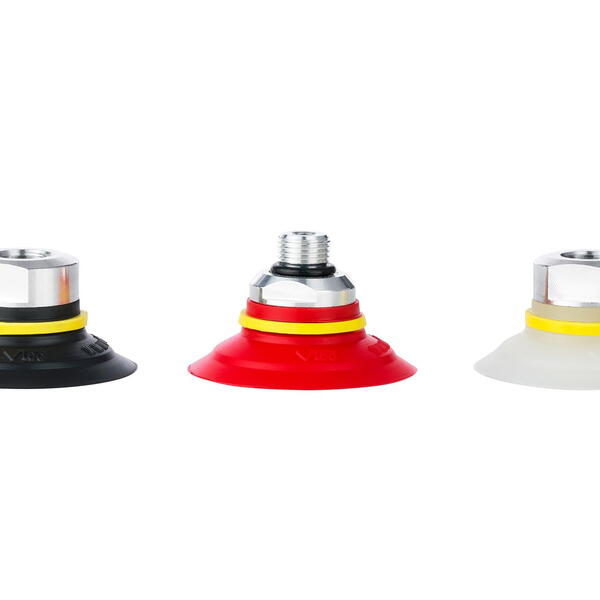

VU40 series

VU40 series

Universal Suction Cups

  • Lifting Force (↑): 3.97 Kg @ -60 kPa
  • Lifting Force (→): 2.24 Kg @ -60 kPa
  • Volume: 5.50 cm³
  • Diameter: 42 mm
  • Catalog list

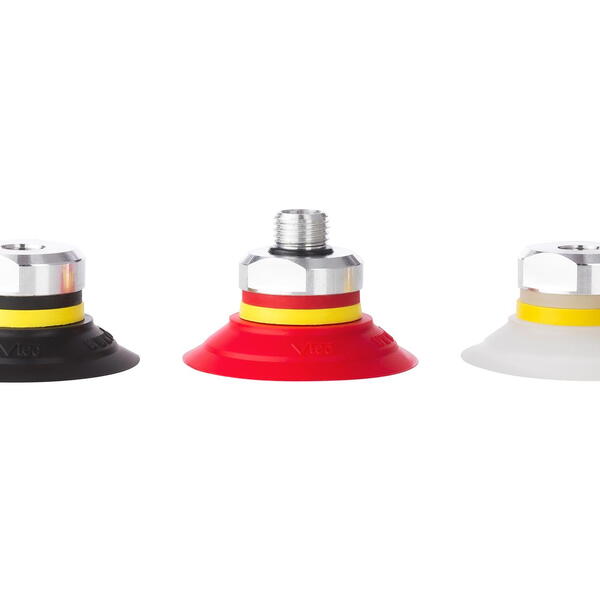

VU50 series

VU50 series

Universal Suction Cups

  • Lifting Force (↑): 7.44 Kg @ -60 kPa
  • Lifting Force (→): 3.77 Kg @ -60 kPa
  • Volume: 12.00 cm³
  • Diameter: 53 mm
  • Catalog list

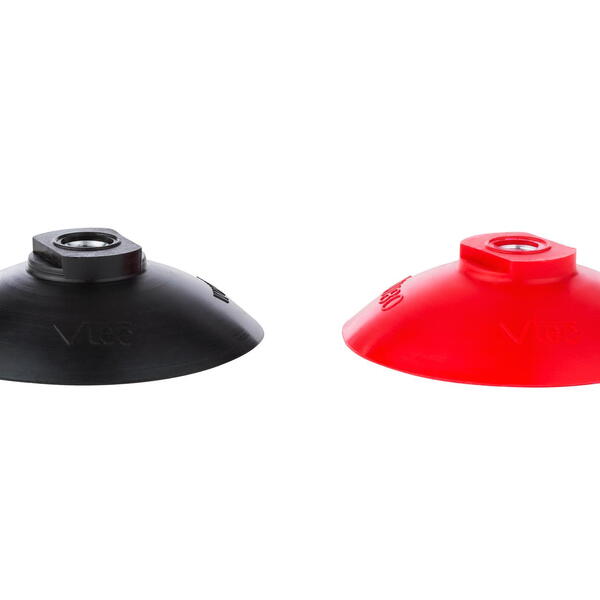

VU80 series

VU80 series

Universal Suction Cups

  • Lifting Force (↑): 19.80 Kg @ -60 kPa
  • Lifting Force (→): 12.70 Kg @ -60 kPa
  • Volume: 32.00 cm³
  • Diameter: 80 mm
  • Catalog list
