VOC Series

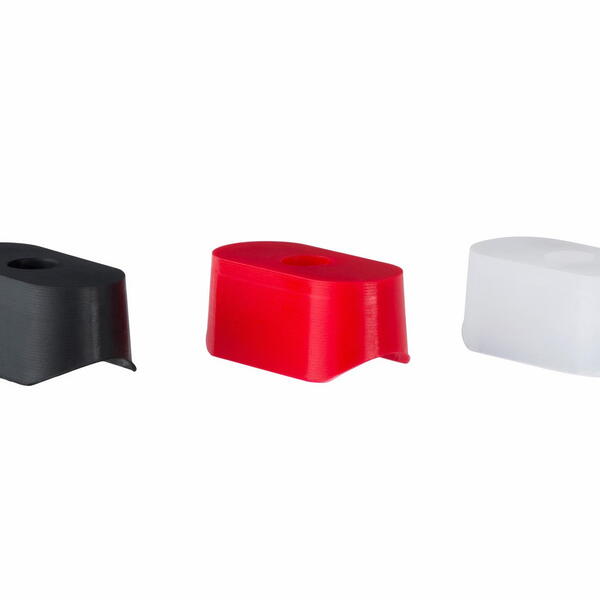

VOC11X23 series

VOC11X23 series

Oval-Curved Suction Cups

  • Lifting Force (↑): 1.30 Kg @ -60 kPa
  • Lifting Force (→): 1.20 Kg @ -60 kPa
  • Volume: 2.0 cm³
  • Size: 12.5 x 24 mm
  • Catalog list

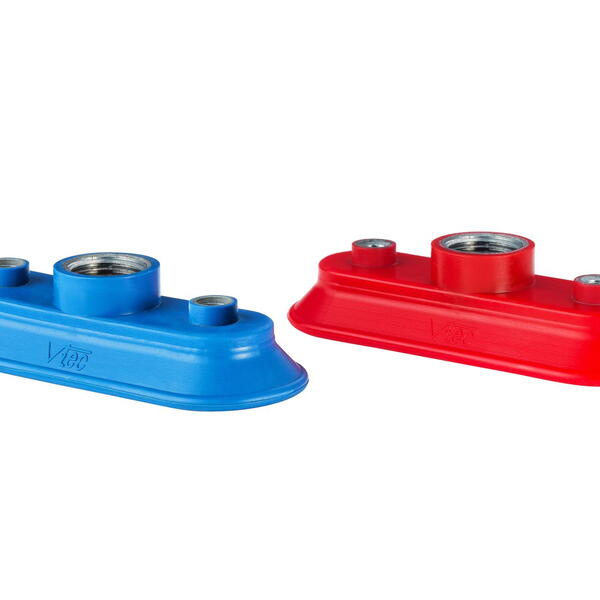

VOC35X90 series

VOC35X90 series

Oval-Curved Suction Cups

  • Lifting Force (↑): 13.40 Kg @ -60 kPa
  • Lifting Force (→): 10.72 Kg @ -60 kPa
  • Volume: 20.0 cm³
  • Size: 37 x 94 mm
  • Catalog list

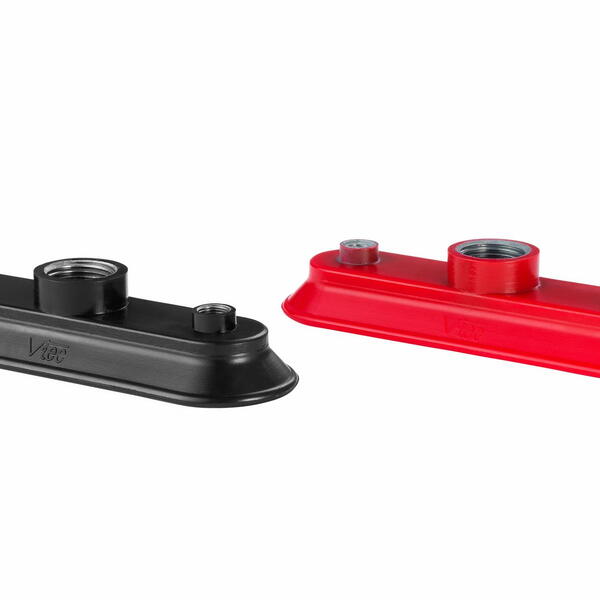

VOC35X110 series

VOC35X110 series

Oval-Curved Suction Cups

  • Lifting Force (↑): 16.70 Kg @ -60 kPa
  • Lifting Force (→): 13.36 Kg @ -60 kPa
  • Volume: 25.0 cm³
  • Size: 37 x 114 mm
  • Catalog list

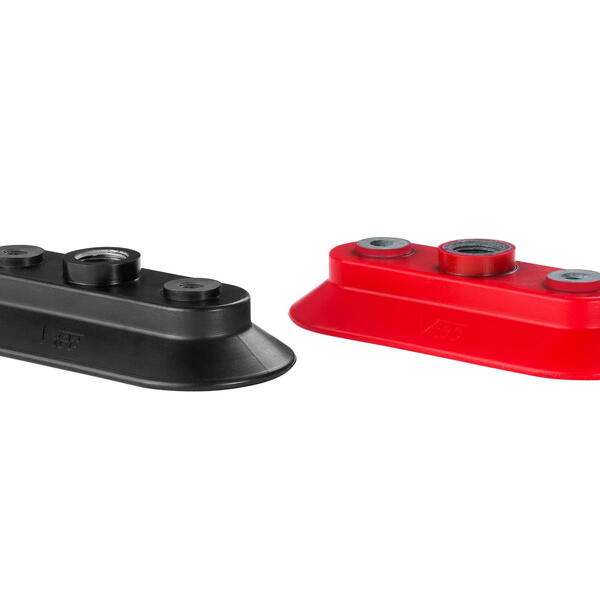

VOC60X140 series

VOC60X140 series

Oval-Universal Suction Cups

  • Lifting Force (↑): 38.00 Kg @ -60 kPa
  • Lifting Force (→): 30.40 Kg @ -60 kPa
  • Volume: 52.0 cm³
  • Size: 61 x 140 mm
  • Catalog list

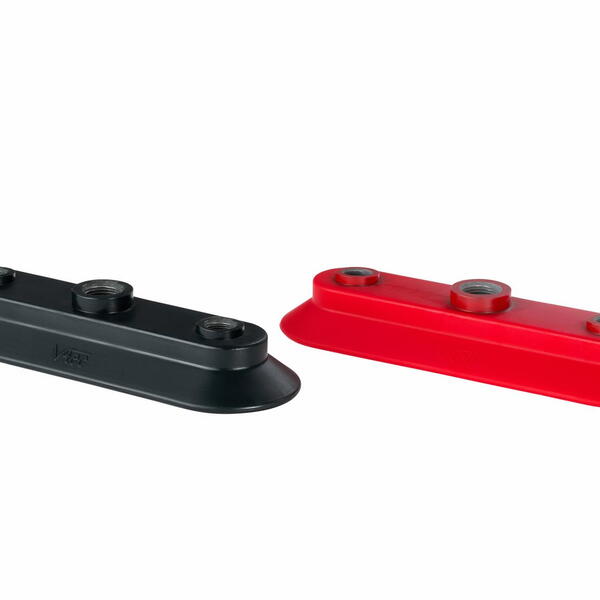

VOC60X180 series

VOC60X180 series

Oval-Universal Suction Cups

  • Lifting Force (↑): 54.20 Kg @ -60 kPa
  • Lifting Force (→): 43.36 Kg @ -60 kPa
  • Volume: 67.0 cm³
  • Size: 61 x 180 mm
  • Catalog list
