VDF Series

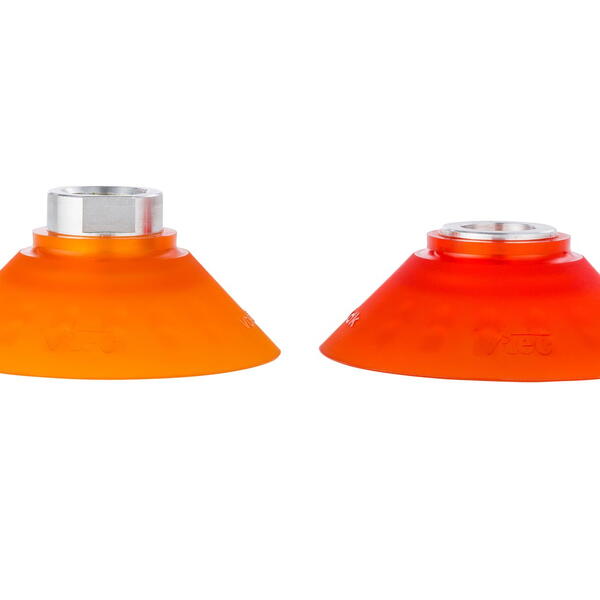

VD90F series

VD90F series

Deep Curved Suction Cups

  • Lifting Force (↑): 24.36 Kg @ -60 kPa
  • Lifting Force (→): 14.42 Kg @ -60 kPa
  • Volume: 56.0 cm³
  • Diameter: 89.5 mm
  • Catalog list

Logo VMECA

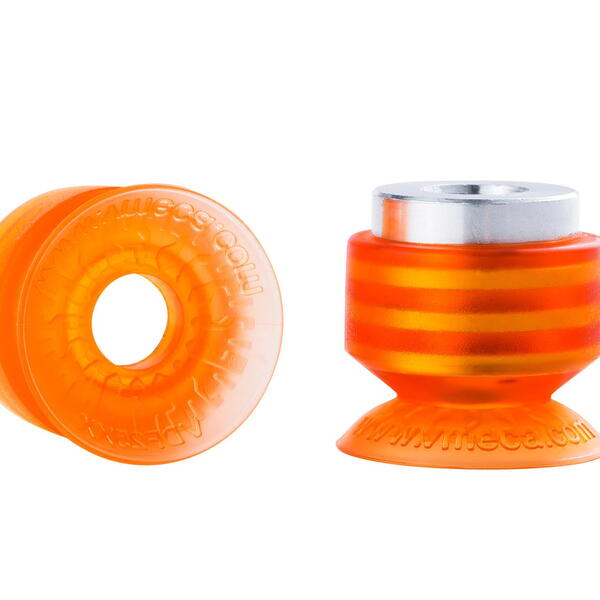

VDF25 series

VDF25 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 3.0 Kg @ -60 kPa
  • Lifting Force (→): 1.9 Kg @ -60 kPa
  • Volume: 1.50 cm³
  • Diameter: 26 mm
  • Catalog list

Logo VMECA

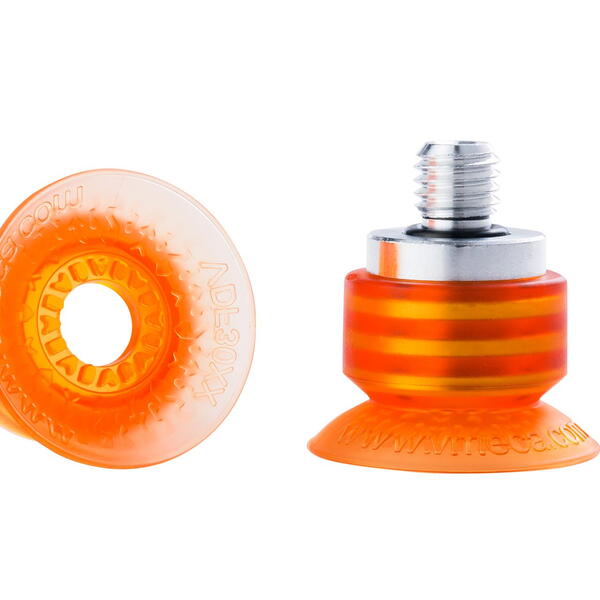

VDF30 series

VDF30 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 4.40 Kg @ -60 kPa
  • Lifting Force (→): 2.80Kg @ -60 kPa
  • Volume: 2.70 cm³
  • Diameter: 32.2 mm
  • Catalog list

Logo VMECA

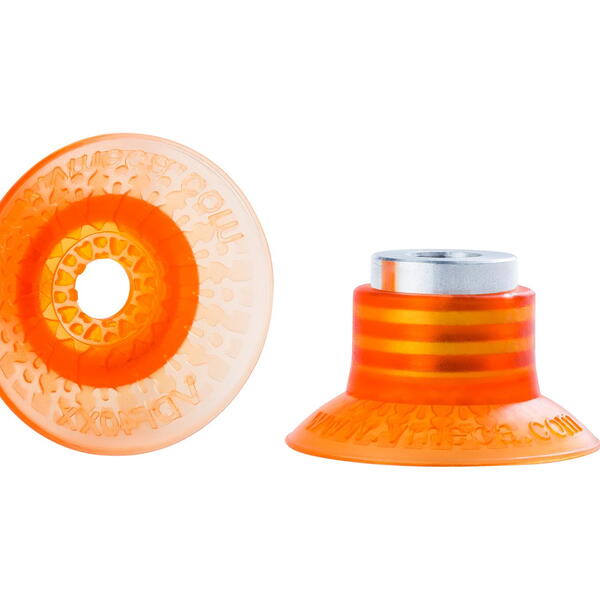

VDF40 series

VDF40 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 6.20 Kg @ -60 kPa
  • Lifting Force (→): 4.70 Kg @ -60 kPa
  • Volume: 7.0 cm³
  • Diameter: 42.5 mm
  • Catalog list

Logo VMECA

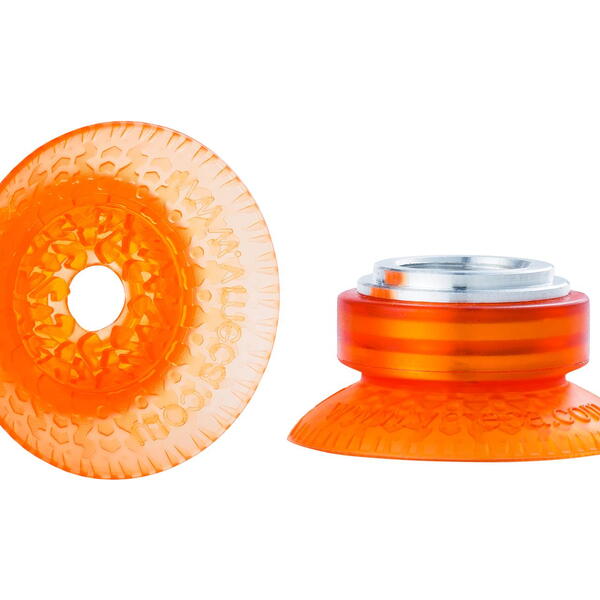

VDF50 series

VDF50 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 10.10 Kg @ -60 kPa
  • Lifting Force (→): 9.20 Kg @ -60 kPa
  • Volume: 14.0 cm³
  • Diameter: 53 mm
  • Catalog list

Logo VMECA

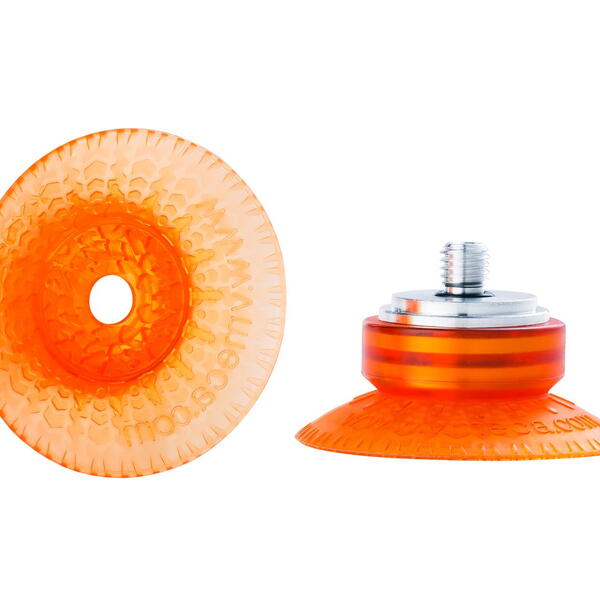

VDF60 series

VDF60 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 13.70 Kg @ -60 kPa
  • Lifting Force (→): 13.80 Kg @ -60 kPa
  • Volume: 24.0 cm³
  • Diameter: 63 mm
  • Catalog list

Logo VMECA

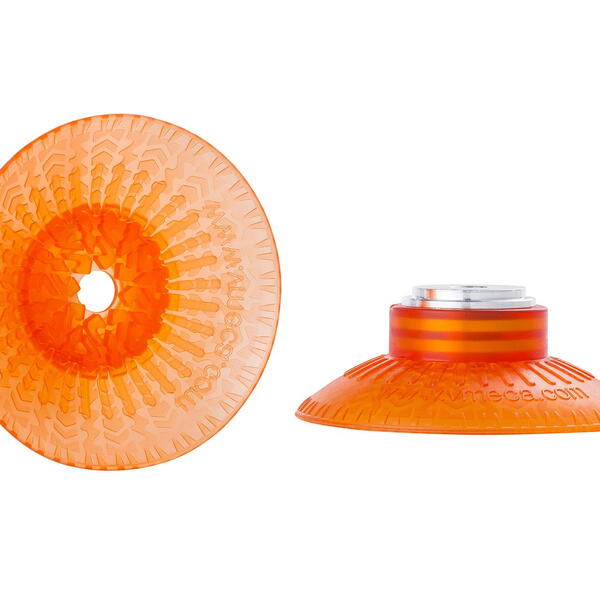

VDF80 series

VDF80 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 21.20 Kg @ -60 kPa
  • Lifting Force (→): 18.50 Kg @ -60 kPa
  • Volume: 50.5 cm³
  • Diameter: 83 mm
  • Catalog list

Logo VMECA

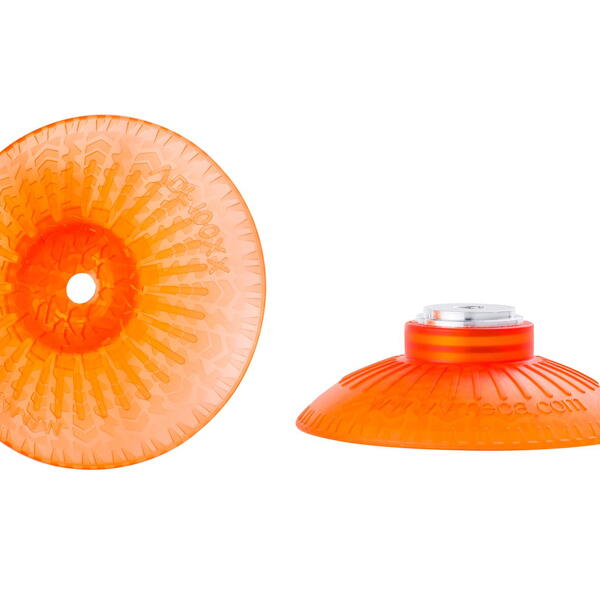

VDF100 series

VDF100 series

Deep-Flat Suction Cups

  • Lifting Force (↑): 30.8 Kg @ -60 kPa
  • Lifting Force (→): 28.2 Kg @ -60 kPa
  • Volume: 94.0 cm³
  • Diameter: 103.7 mm
  • Catalog list
