VD Series

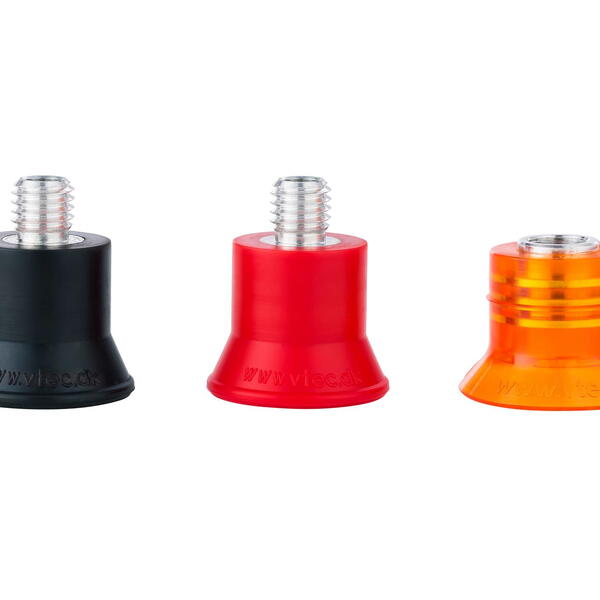

VD30 series

VD30 series

Deep Curved Suction Cups

  • Lifting Force (↑): 2.55 Kg @ -60 kPa
  • Lifting Force (→): 1.53 Kg @ -60 kPa
  • Volume: 4.50 cm³
  • Diameter: 30 mm
  • Catalog list

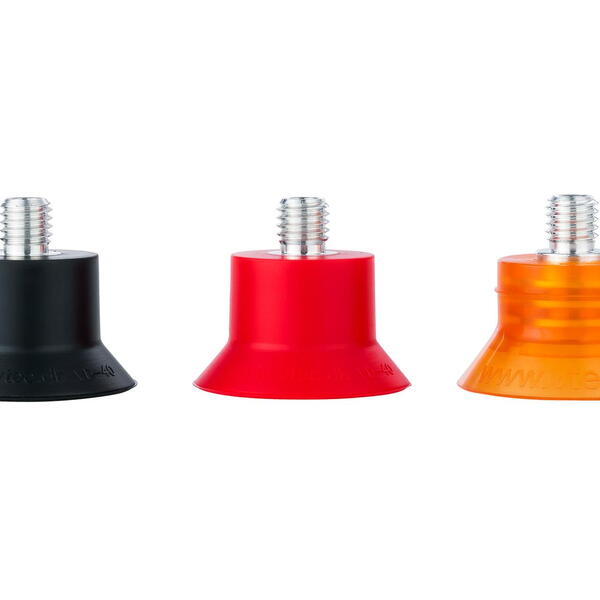

VD40 series

VD40 series

Deep Curved Suction Cups

  • Lifting Force (↑): 3.97 Kg @ -60 kPa
  • Lifting Force (→): 2.38 Kg @ -60 kPa
  • Volume: 7.0 cm³
  • Diameter: 40 mm
  • Catalog list

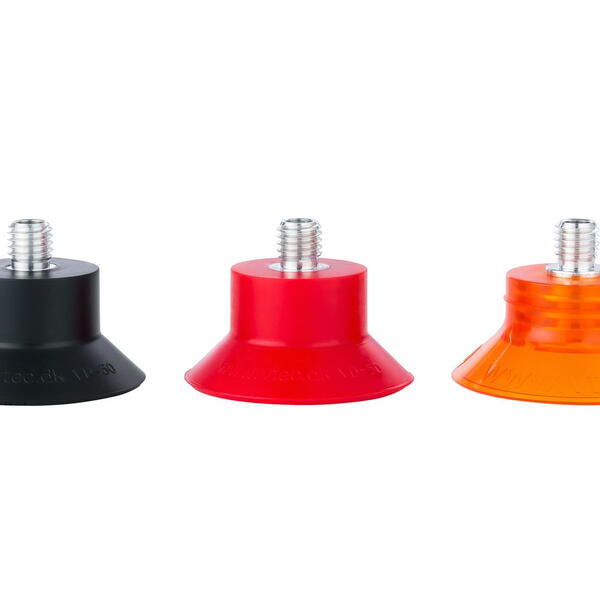

VD50 series

VD50 series

Deep Curved Suction Cups

  • Lifting Force (↑): 7.44 Kg @ -60 kPa
  • Lifting Force (→): 4.46 Kg @ -60 kPa
  • Volume: 13.5 cm³
  • Diameter: 50 mm
  • Catalog list

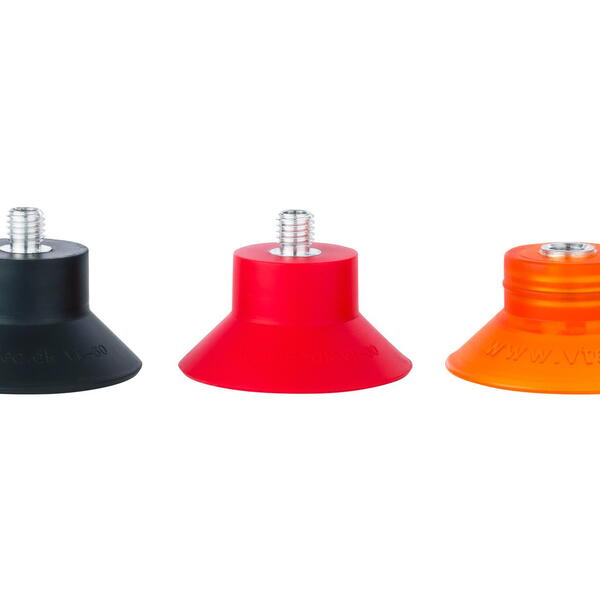

VD60 series

VD60 series

Deep Curved Suction Cups

  • Lifting Force (↑): 14.00 Kg @ -60 kPa
  • Lifting Force (→): 8.4 Kg @ -60 kPa
  • Volume: 22.0 cm³
  • Diameter: 60 mm
  • Catalog list

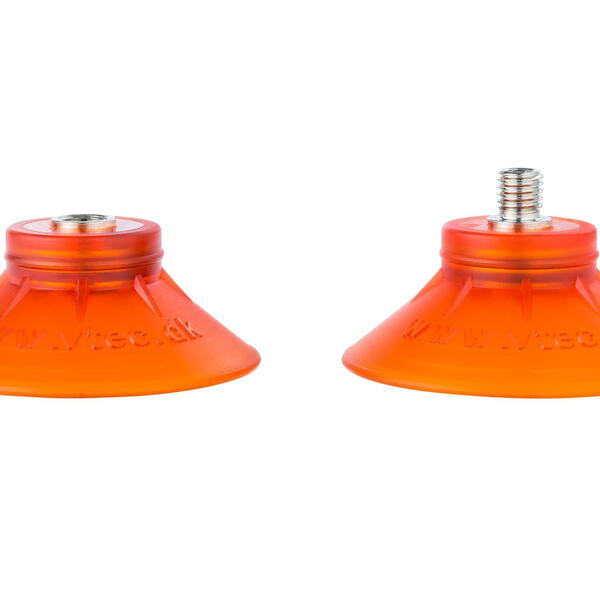

VD70 series

VD70 series

Deep Curved Suction Cups

  • Lifting Force (↑): 18.8 Kg @ -60 kPa
  • Lifting Force (→): 11.6 Kg @ -60 kPa
  • Volume: 38.0 cm³
  • Diameter: 72 mm
  • Catalog list

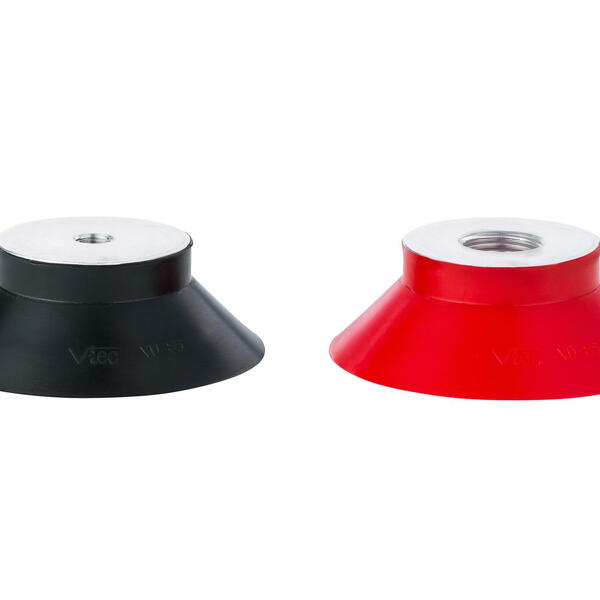

VD85 series

VD85 series

Deep Curved Suction Cups

  • Lifting Force (↑): 28.00 Kg @ -60 kPa
  • Lifting Force (→): 16.8 Kg @ -60 kPa
  • Volume: 60.0 cm³
  • Diameter: 85 mm
  • Catalog list

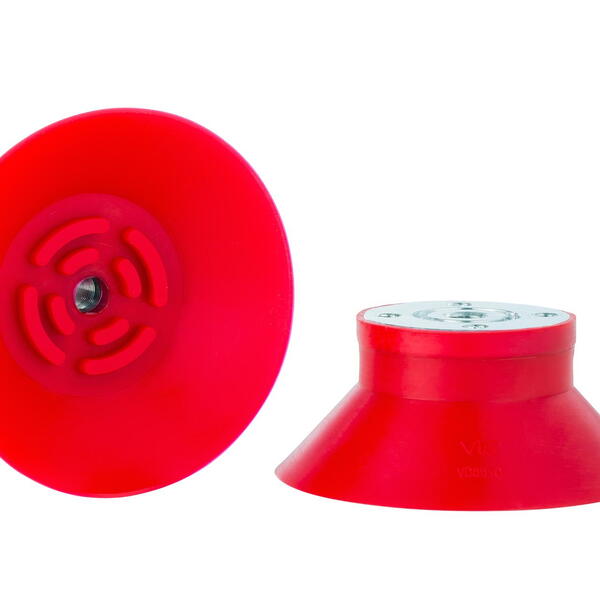

VD85X series

VD85X series

Deep Curved Suction Cups

  • Lifting Force (↑): 28.00 Kg @ -60 kPa
  • Lifting Force (→): 16.8 Kg @ -60 kPa
  • Volume: 66.0 cm³
  • Diameter: 88 mm
  • Catalog list
