VBL Series

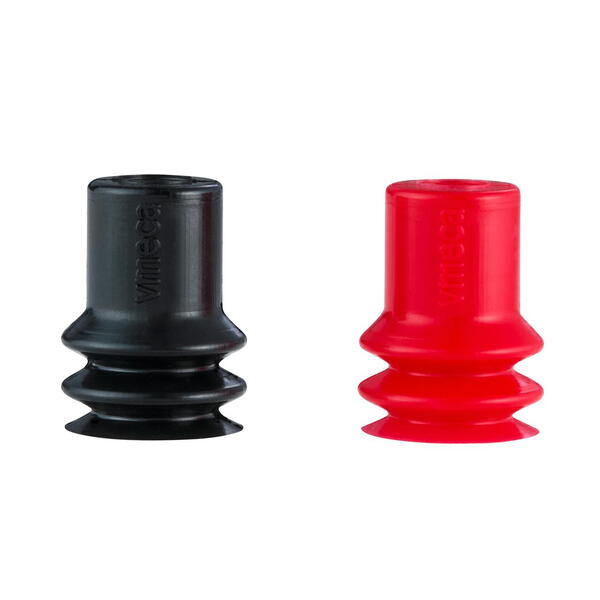

VBL10 series

VBL10 series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 0.34 Kg @ -60 kPa
  • Volume: 0.54 cm³
  • Diameter: 10 mm
  • Catalog list

Logo VMECA

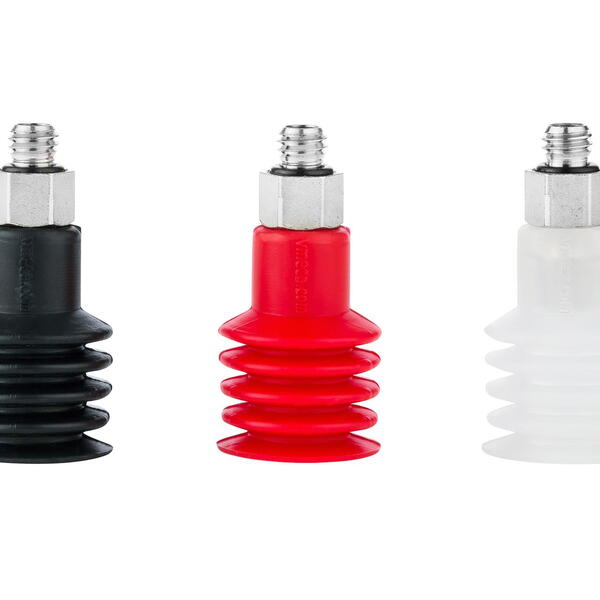

VBL15 series

VBL15 series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 0.60 Kg @ -60 kPa
  • Volume: 1.95 cm³
  • Diameter: 15.5 mm
  • Catalog list

Logo VMECA

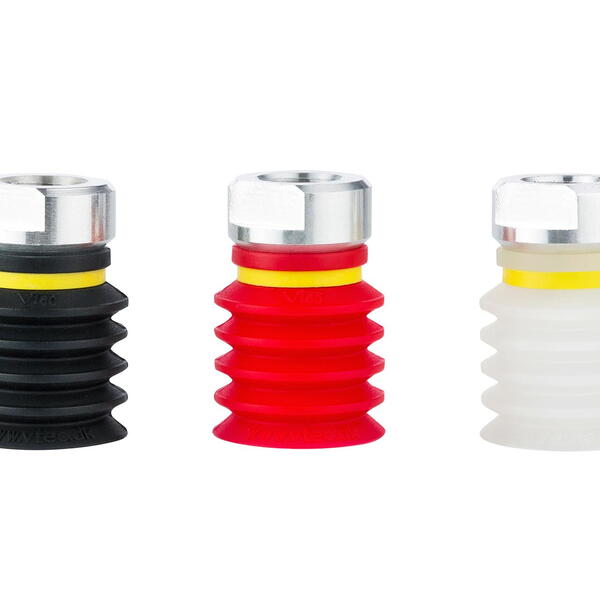

VBL20 series

VBL20 series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 0.90 Kg @ -60 kPa
  • Volume: 4.0 cm³
  • Diameter: 20 mm
  • Catalog list

Logo VMECA

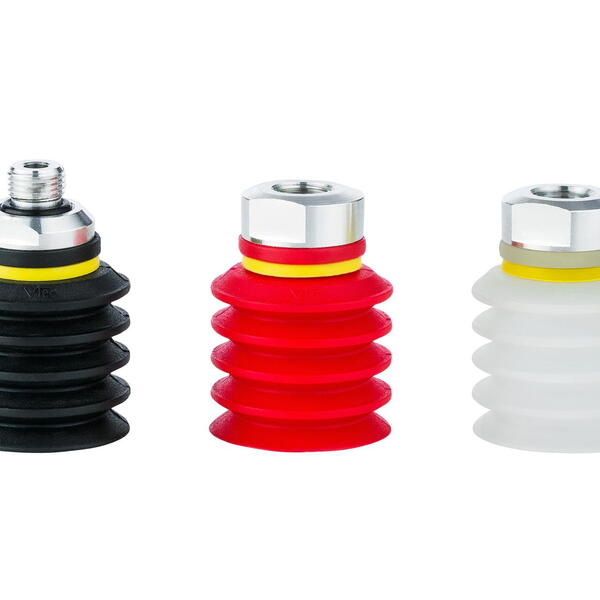

VBL30 series

VBL30 series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 2.20 Kg @ -60 kPa
  • Volume: 13.0 cm³
  • Diameter: 30 mm
  • Catalog list

Logo VMECA

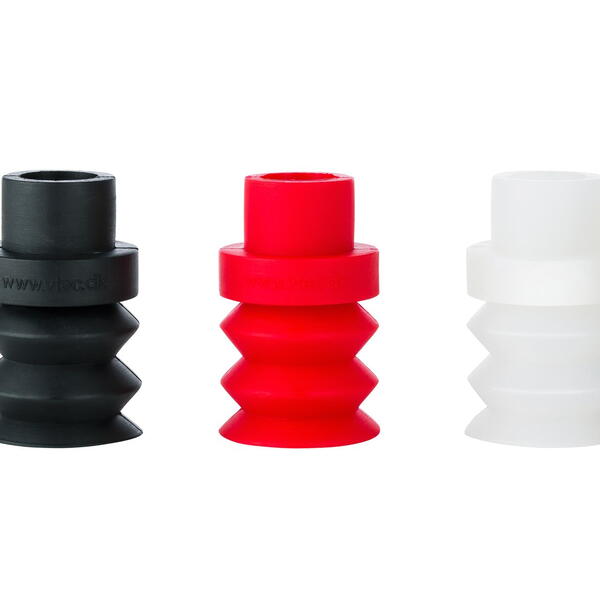

VBL35M series

VBL35M series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 3.30 Kg @ -60 kPa
  • Volume: 21.0 cm³
  • Diameter: 35 mm
  • Catalog list

Logo VMECA

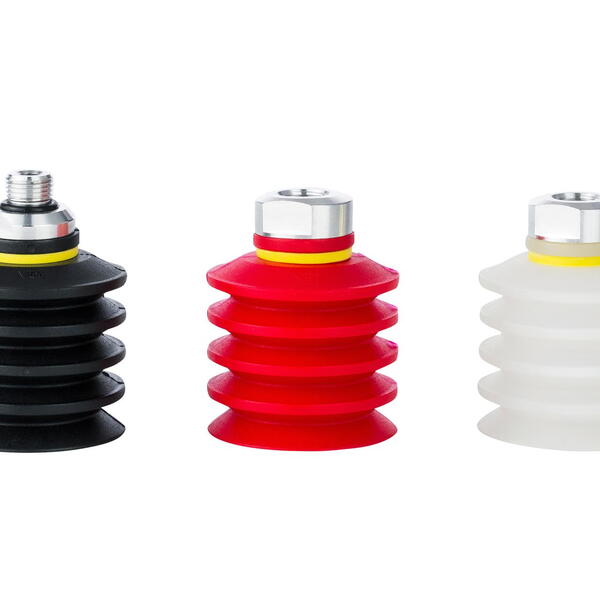

VBL40 series

VBL40 series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 3.60 Kg @ -60 kPa
  • Volume: 27.0 cm³
  • Diameter: 40 mm
  • Catalog list

Logo VMECA

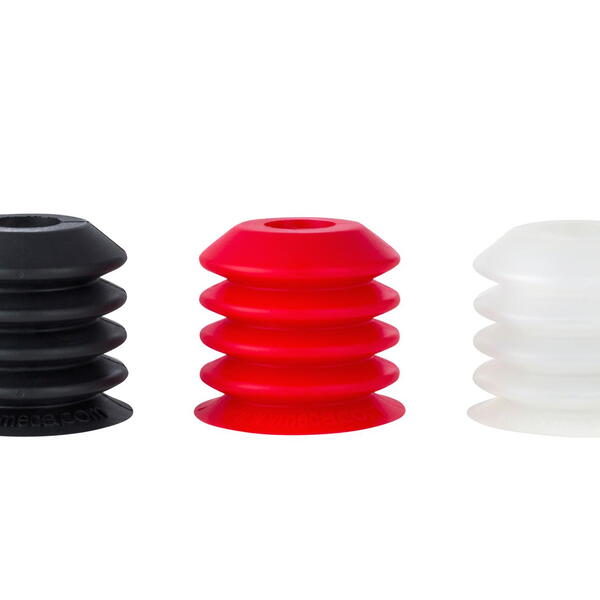

VBL40B series

VBL40B series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 4.3 Kg @ -60 kPa
  • Volume: 26.0 cm³
  • Diameter: 42 mm

Logo VMECA

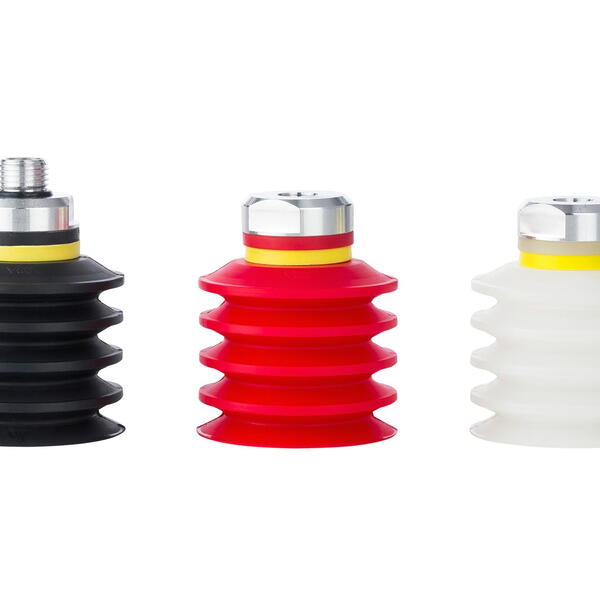

VBL50 series

VBL50 series

Multi-Bellows Suction Cups

  • Lifting Force (↑): 6.0 Kg @ -60 kPa
  • Volume: 55.0 cm³
  • Diameter: 50 mm
  • Catalog list

Logo VMECA
