FCF Series

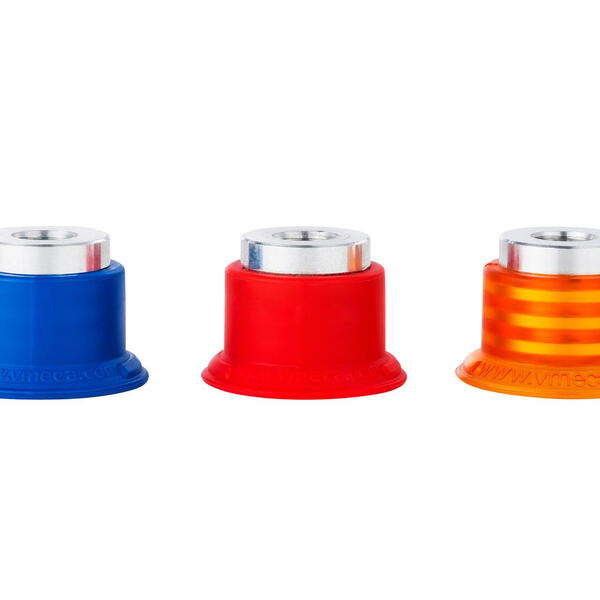

FCF30 series

FCF30 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 4.60 Kg @ -60 kPa
  • Lifting Force (→): 2.0 Kg @ -60 kPa
  • Volume: 2.0 cm³
  • Diameter: 32 mm
  • Catalog list

Logo VMECA

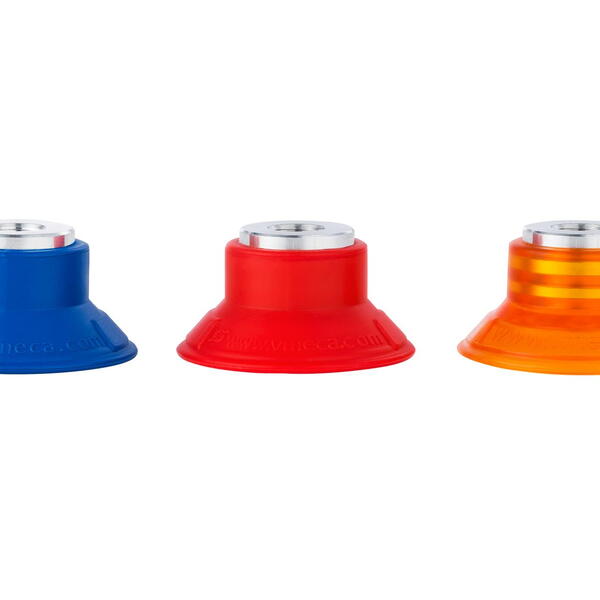

FCF40 series

FCF40 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 6.9 Kg @ -60 kPa
  • Lifting Force (→): 5.0 Kg @ -60 kPa
  • Volume: 4.4 cm³
  • Diameter: 42 mm
  • Catalog list

Logo VMECA

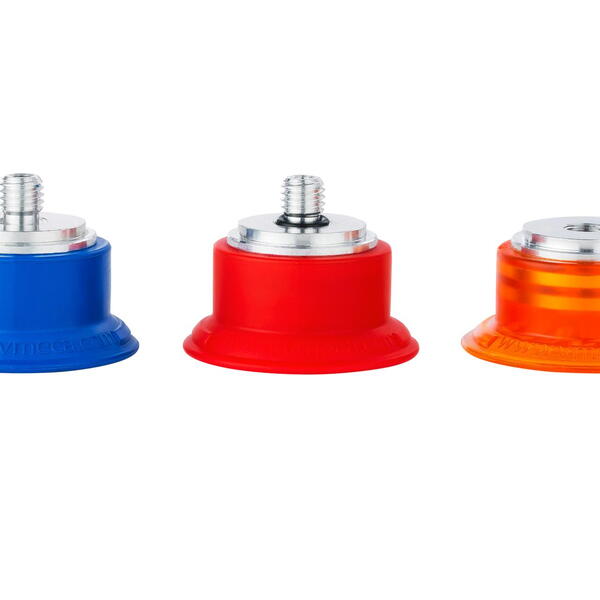

FCF50 series

FCF50 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 10.8 Kg @ -60 kPa
  • Lifting Force (→): 6.7 Kg @ -60 kPa
  • Volume: 8.0 cm³
  • Diameter: 52 mm
  • Catalog list

Logo VMECA

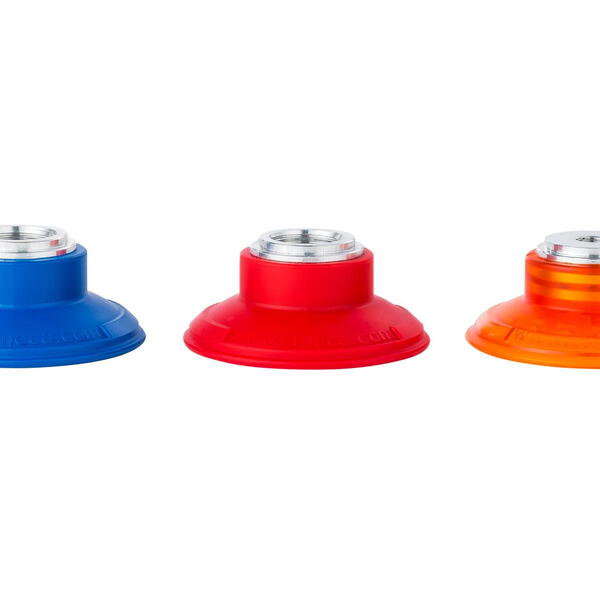

FCF70 series

FCF70 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 19.6 Kg @ -60 kPa
  • Lifting Force (→): 15.8 Kg @ -60 kPa
  • Volume: 20.7 cm³
  • Diameter: 72 mm
  • Catalog list

Logo VMECA

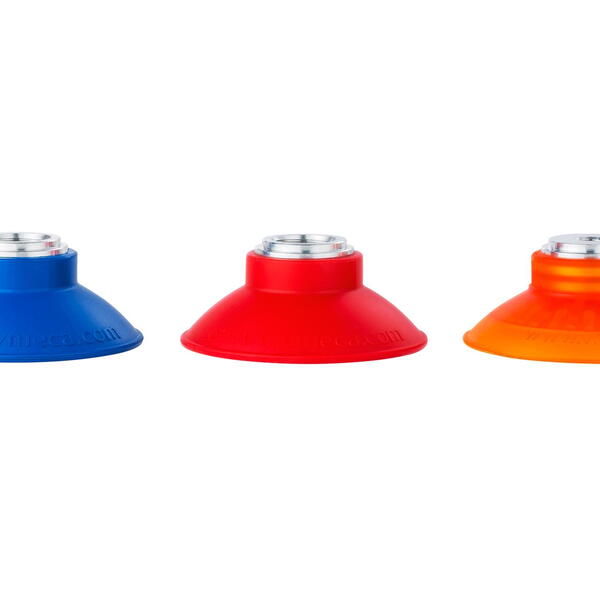

FCF80 series

FCF80 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 25.9 Kg @ -60 kPa
  • Lifting Force (→): 17.7 Kg @ -60 kPa
  • Volume: 36.0 cm³
  • Diameter: 82.5 mm
  • Catalog list

Logo VMECA

FCF100 series

FCF100 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 37.1 Kg @ -60 kPa
  • Lifting Force (→): 35.4 Kg @ -60 kPa
  • Volume: 58.0 cm³
  • Diameter: 104 mm
  • Catalog list

Logo VMECA

FCF125 series

FCF125 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 44.5 Kg @ -60 kPa
  • Lifting Force (→): 42.5 Kg @ -60 kPa
  • Volume: 115.0 cm³
  • Diameter: 128 mm
  • Catalog list

Logo VMECA

FCF60 series

FCF60 series

Flat-Curved Suction Cups

  • Lifting Force (↑): 15.2 Kg @ -60 kPa
  • Lifting Force (→): 13.3 Kg @ -60 kPa
  • Volume: 14.6 cm³
  • Diameter: 62 mm
  • Catalog list

Logo VMECA
